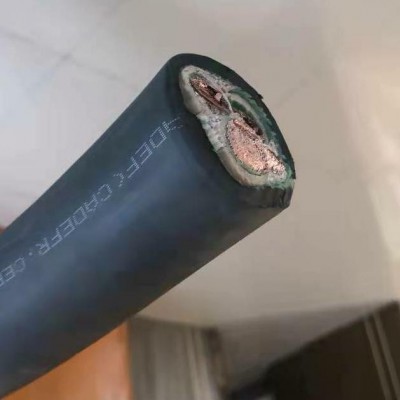

船岸连接电缆

SHIP-TO-SHORE CONNECTION CABLES

用途 Application

适用于船舶停港口时接入岸上电源并向船 It is applicable to the power connection line connected

舶供电的电源连接线。 to the shore power supply and supplying power to the ship

取得CCS工厂（型式）认可证书 when the ship stops at the port.

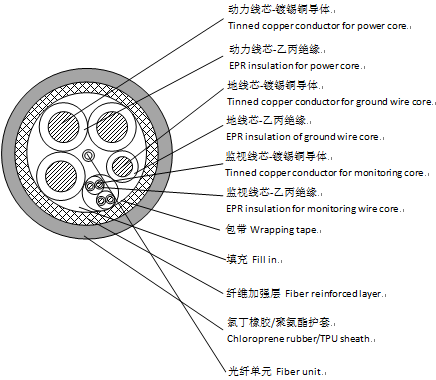

型号Type	名称Description
ADEF(CADEFR)/DA/SA	乙丙绝缘氯丁橡胶护套船岸连接电缆，DA/SA型 EPR insulated PCP sheathed Ship-to-Shore Connection Cable,Type DA/SA

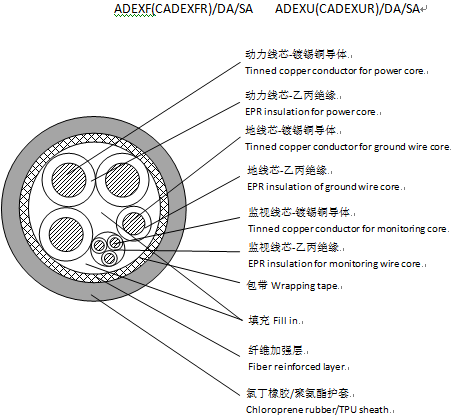

ADEXF(CADEXFR)/DA/SA	乙丙绝缘纤维编织加强层氯丁橡胶护套船岸连接电缆，DA/SA型 EPR insulated fiber braided reinforcement PCP sheathed Ship-to-Shore Connection Cable,Type DA/SA
ADEU(CADEUR)/DA/SA	乙丙绝缘聚氨脂护套船岸连接电缆，DA/SA型 EPR insulated TPU sheathed Ship-to-Shore Connection Cable,Type DA/SA
ADEXU(CADEXUR)/DA/SA	乙丙绝缘纤维编织加强层聚氨脂护套船岸连接电缆，DA/SA型 EPR insulated fiber braided reinforcement TPU sheathed Ship-to-Shore Connection Cable,Type DA/SA

船岸连接电缆电压等级：0.6/1kV 90℃
芯数×动力线芯标称截面 No.Of core×nominal cross sectional area of power core (mm²)	芯数×地线芯标称截面 No.Of core×nominal cross sectional area of ground wire core(mm²)	芯数×监视线芯标称截面 No.Of core×nominal cross sectional area of monitoring core (mm²)	电缆最大外径Max.acceptable cable overall diameter (mm)		参考重量 Reference weight (kg/km)


			U	F	U	F
1×70	-	-	20.9	22.8	1066	1170
1×95	-		23.2	25.6	1406	1552
1×120	-		25.4	28.1	1712	1887
1×150	-		28.1	30.7	2090	2282
1×185	-		30.8	33.7	2523	2756
1×240	-		34.7	38.0	3309	3617
3×25	1×16	2×2×1.5 2×2×2.5 1×2×1.5 1×2×2.5 3~9×1.5 3~9×2.5	30.6	33.8	1853	2078
3×35	1×35		34.6	37.9	2563	2863
3×50	1×50		40.6	44.4	3643	4048
3×70	1×50		44.8	49.1	4462	4962
3×95	1×50		49.2	54.0	5663	6280
3×120	1×70		54.6	59.9	6994	7741
3×150	1×95		60.8	66.6	8714	9620
3×185	1×95		65.6	72.1	10235	11352
3×240	1×120		74.2	81.4	13382	14789

产品主要性能	Main performance
具有耐阻燃、日光老化、耐磨、抗撕、耐盐雾、耐循环弯曲（满足IEC80005.1规定的5000次卷绕试验）及优良的电性能（耐压测试3.5KV/5min）。	flame resistance, sun aging, wear resistance, tear resistance, salt spray resistance, cyclic bending (meet IEC80005.1 provisions of 5000 winding test) and excellent electrical performance (pressure test 3.5kV /5min).
产品使用特性	Product features
额定电压 U₀/U 为0.6/1KV ; 最低工作温度（静态）为-40℃；导体允许长期最高工作温度为90℃；最大短路时间为5S时导体最高工作温度不超过250℃；电缆最小弯曲半径（静态）为电缆外径D的6倍。	Rated voltage U0/U is 0.6/1kV; The lowest operating temperature (static) is -40℃; The maximum allowable long-term operating temperature of the conductor is 90℃; When the maximum short-circuit time is 5S, the maximum operating temperature of the conductor shall not exceed 250℃; The minimum bending radius (static) of the cable is 6 times of the cable diameter D.
